Image Intensifier Tubes
Enhanced Low-Light Performance

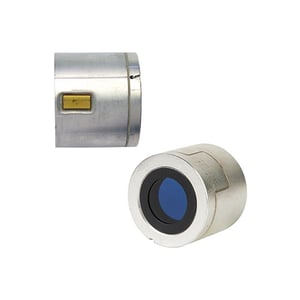

MX-10160 (F9400/F9800)
Engineered for the AN/AVS-6, AN/AVS-9 aviation systems and the AN/PVS-23 ground system.
- Enhanced low-light performance with high-photocathode sensitivity to low radiation levels of visible and near infrared light
- Extended detection ranges in little to no light provided by very high signal-to-noise ratio
- Exceptional image resolution and longer tube life supported by advanced MCP engineering
- Available in white or green phosphor configurations
- Resolution minimum 64 or 72 line pair, depending on FOM requirements
- Photoresponse from a minimum of 1500 micro amps per lumen or higher, depending on requirements

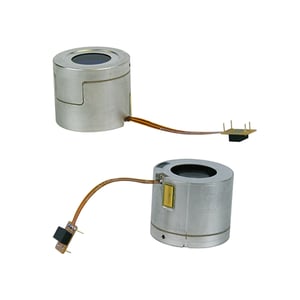

MX-11769 (F9415/F9815)
Engineered for the AN/PVS-14 (F6015) monocular system and weapon sights, with added capabilities to adjust tube gain or brightness in field.
- Enhanced low-light performance with high-photocathode sensitivity to low radiation levels of visible and near infrared light
- Extended detection ranges in little to no light provided by very high signal-to-noise ratio
- Exceptional image resolution and longer tube life supported by advanced MCP engineering
- Available in white or green phosphor configurations
- Resolution minimum 64 or 72 line pair, depending on FOM requirements
- Photoresponse from a minimum of 1500 micro amps per lumen or higher, depending on requirements
